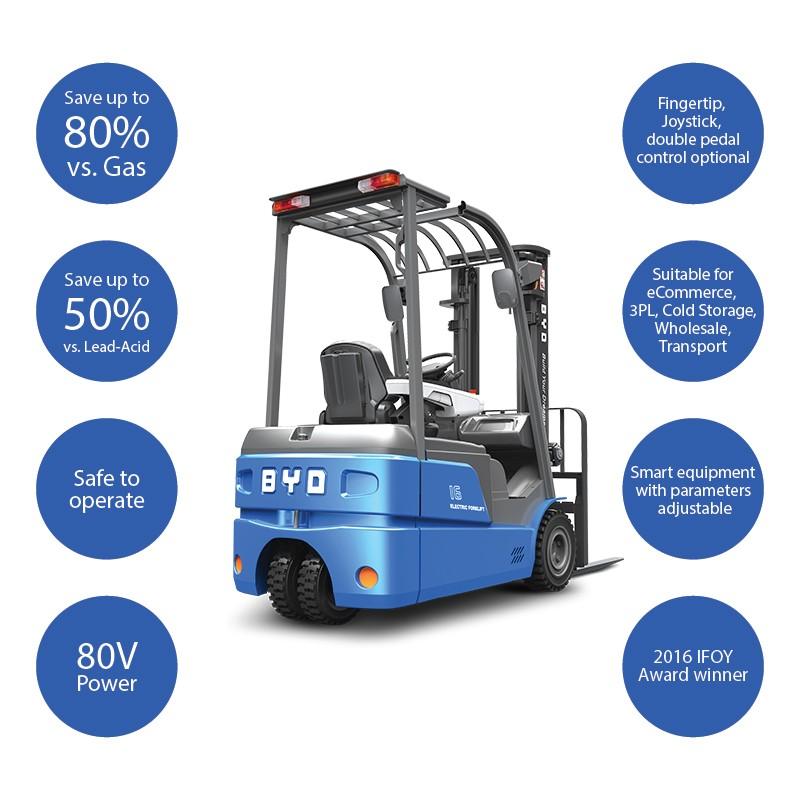

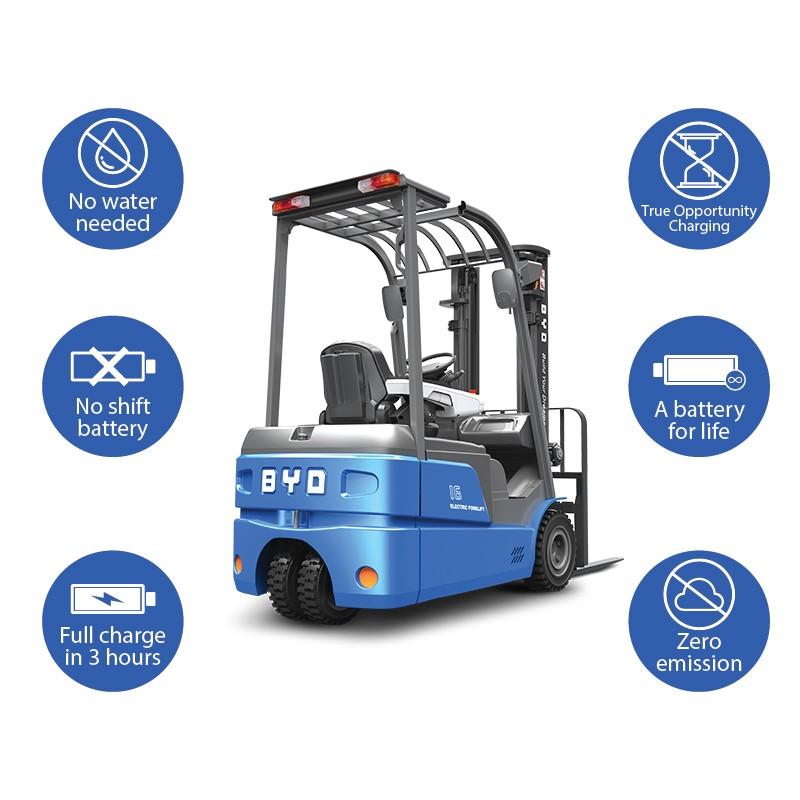

BYD ECB16 – 3 wheels Lithium Counterbalance Forklift

$46,500.00 +GST

Small turning radius with fast charging and true opportunity charging, allows this ECB16 four-wheeler to suit a variety of industries: 3PL, eCommerce, wholesale, pharmaceuticals and more. It can be a great combination to work with reach forklifts in aisles, loading areas. This machine is designed to work around the clock.

Load Capacity

1600 kg

Battery Type

Lithium Iron Phosphate

Battery Capacity

80V270AH

Lifting Height

3000-5000mm

Control Options

Fingertip, Joystick, Lever

Attachment Opt.

Fork Positioning, Others, Side Shifter

Tyre Options

Cushion, Non-Marking, Solid

Min. turning radius

1570mm

Description

FEATURES

Safety

Electric braking system | Slope protection | Multi-functional seat with safe belt -Operator Presence Sensing (OPS) | High loading position protection | Strobe light and reversing alarm | LED headlights and rear combination lights | Programmable automatic speed limit | Cylinder lowering speed limit | Charger protection | Overload protection

Performance

Iron-phosphate Battery | AC drive system | AC hydraulic lift system | Small turning radius | Battery rapid charging & opportunity charging-Programmable performance | Digital (LCD) multifunction display(Time & date, OPS time accumulator, Battery capacity indicator, Over-discharge warning (lift interrupt), Parking brake indicator, Direction indicator, Maintenance indicator, Overload indicator) | Built-in analyzer | Self-diagnostics

Operability & Ergonomics

Strategically configured instrument | Front & rear operator assist grips | Automatic fork-leveling control | Hydraulic directional shift control | Seat-mounted Mini dual joystick | Heavy-duty slip-resistant floor mat | Bay with USB port | Bay with Cup holder | Parking brake alarm

Serviceability

AC drive motor (no brushes or commutator) | AC hydraulic motor (no brushes or commutator) | Charging port analyzing connection | Easy-access no-tools floorboard | Maintenance-free battery case | Easy-lift battery hood | Hydraulic fluid level check | Easy-access controllers | CAN-bus controller wiring

DOWNLOAD DATA SHEETS

Download ECB16 3W Data Sheet
