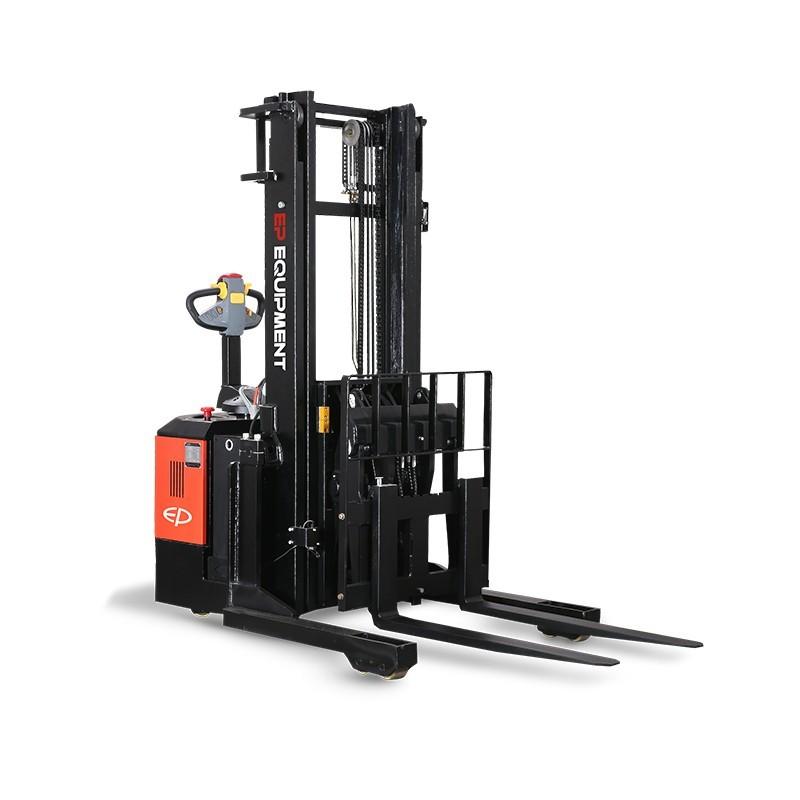

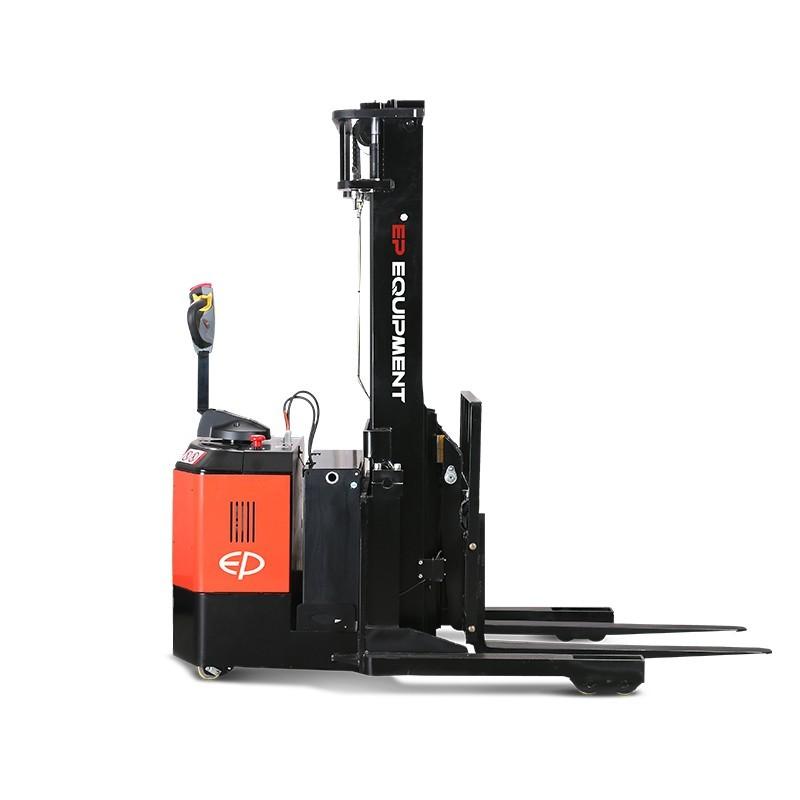

EP CQE15S Electric Walkie Reach Stacker

$21,407.00 $17,839.00 +GST

The CQE15S reach truck is walkie reach truck specially designed for narrow aisle and non-standard pallets. To be a good supporter of all kinds of stacking work. The operation of CQE is accurate and reliable by the electromagnetic valve. More comfortable and efficient driving by dual-monitoring power steering. The lithium battery is optional.

Load Capacity

1500 kg

Lifting Height

4800mm

Attachment Opt.

Side Shifter

Battery Capacity

24V224AH

Battery Type

AGM Battery

Charger Type

Built-in Charger

Description

The CQE15S is a ride-on reach truck from EP Equipment, with 1.5-tonne capacity, 590mm pantograph reach, side-shift, and lift heights up to 5.5 metres. Specially designed for narrow-aisle operations and non-standard pallets, the CQE15S features a spring-loaded folding platform for the operator, making it ideal for long-distance logistics.

With a 24v/224ah AGM battery on a lateral roller bed and an external charger, the CQE15S can be used for 24/7 operations if needed. The ZAPI AC controller provides enough power to navigate ramps and uneven terrain, while a triplex mast with free-lift allows the CQE15S to unload shipping containers.

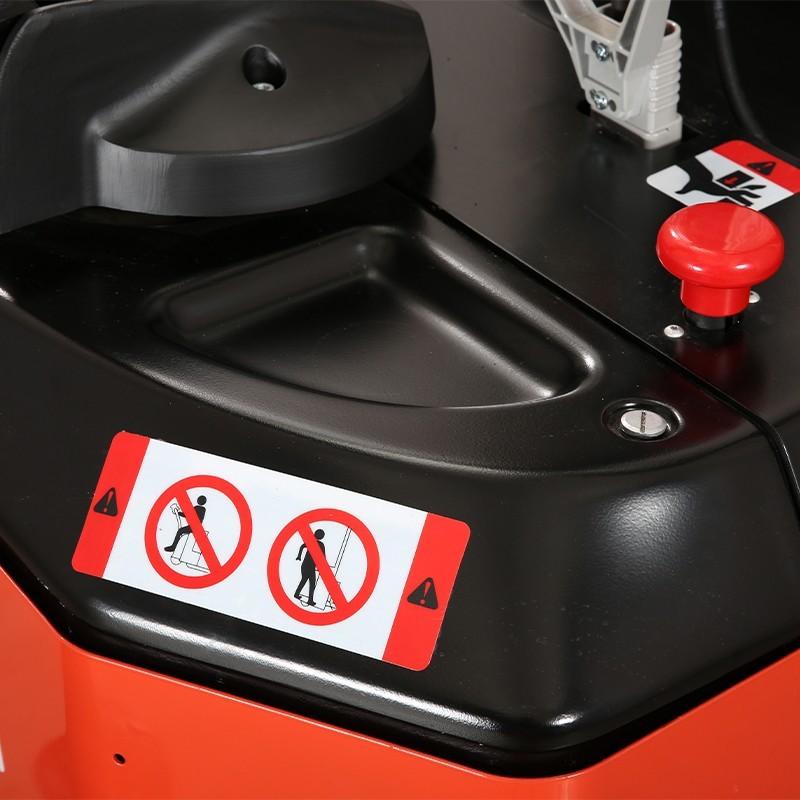

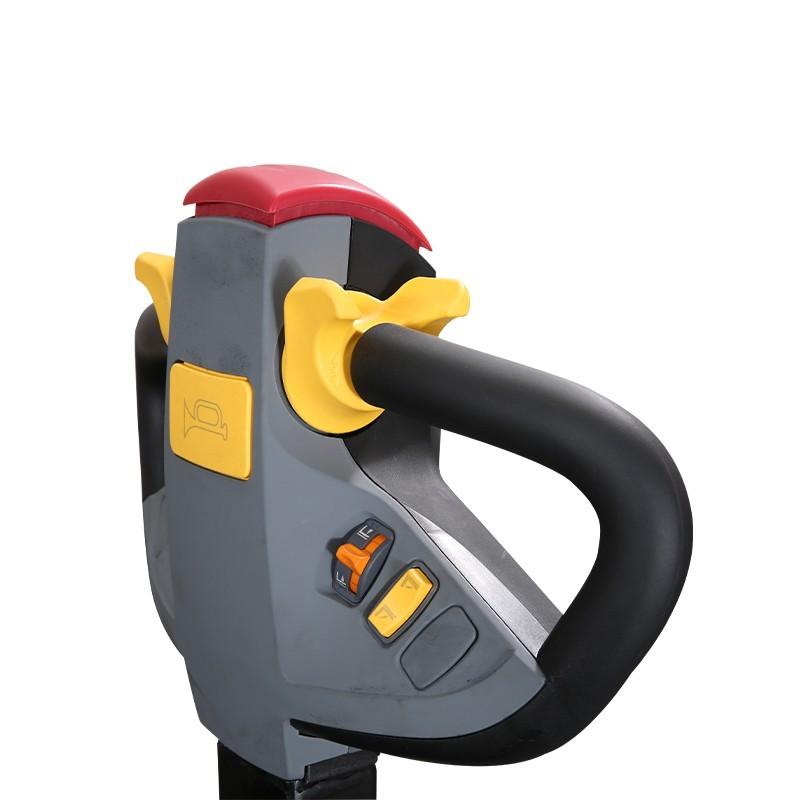

The CQE15S features an ergonomic tiller head, with electronic power steering and proportional dual-hand controls for precise operation. A range of safety features is fitted as standard, including an anti-rollback device, a belly cutout switch and hose-burst valve.

An extremely cost-effective walkie reach truck, the CQE15S is ideal for medium-duty logistics and SME warehousing. The CQE15S is backed by a 2-year EP warranty.

– 1500kg load capacity

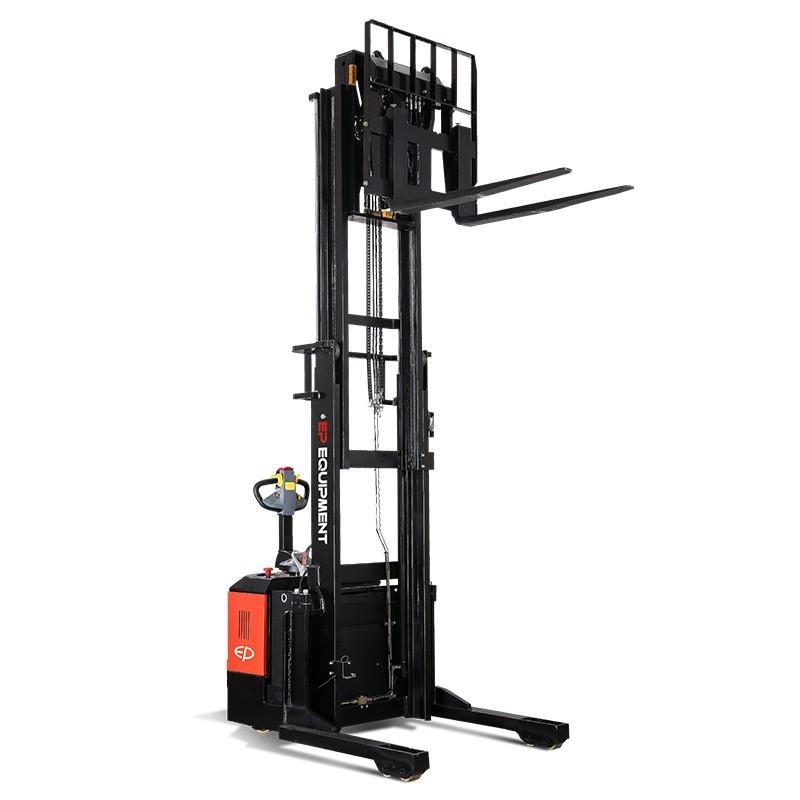

– 4.8m triplex mast as standard (options from 3.0m to 5.5m)
– 2230mm free lift as standard

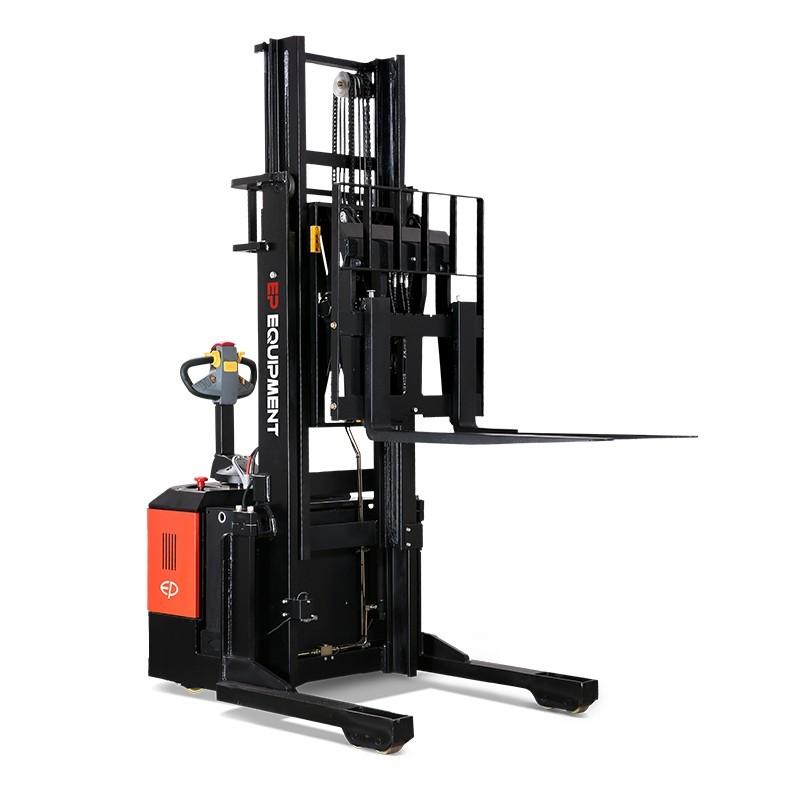

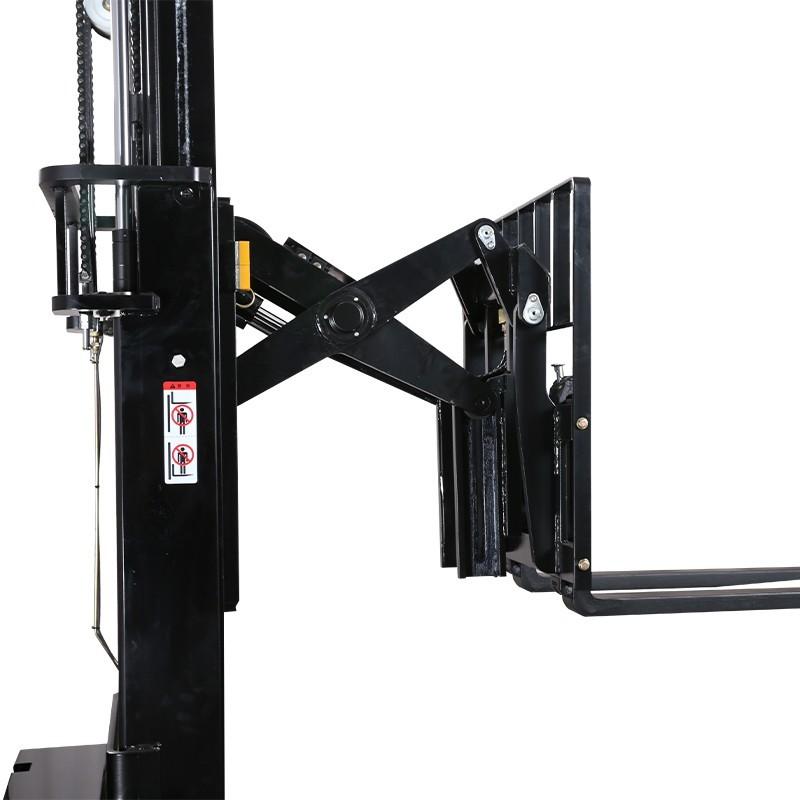

– 590mm pantograph reach with side-shift
– Folding operator platform

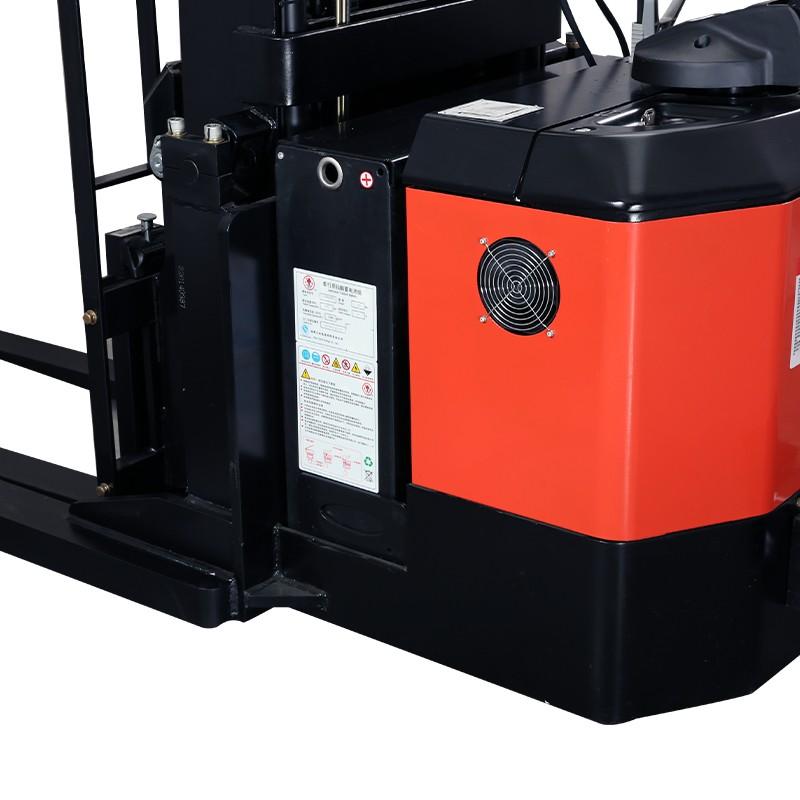

– 24V/224AH AGM battery on the lateral roller bed
– Build-in charger
– ZAPI AC system
– Proportional controls
– Electromagnetic braking

Download Data Sheet

Download EP CQE15S Data Sheet
