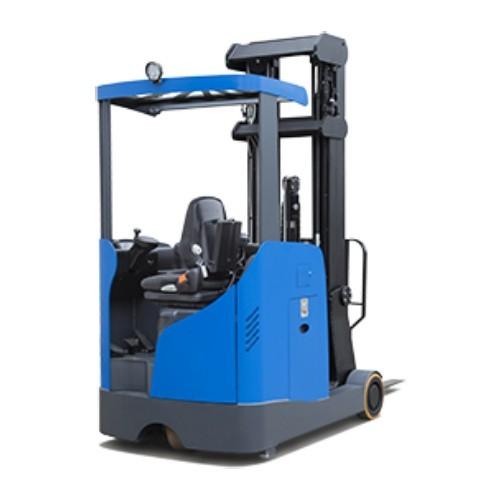

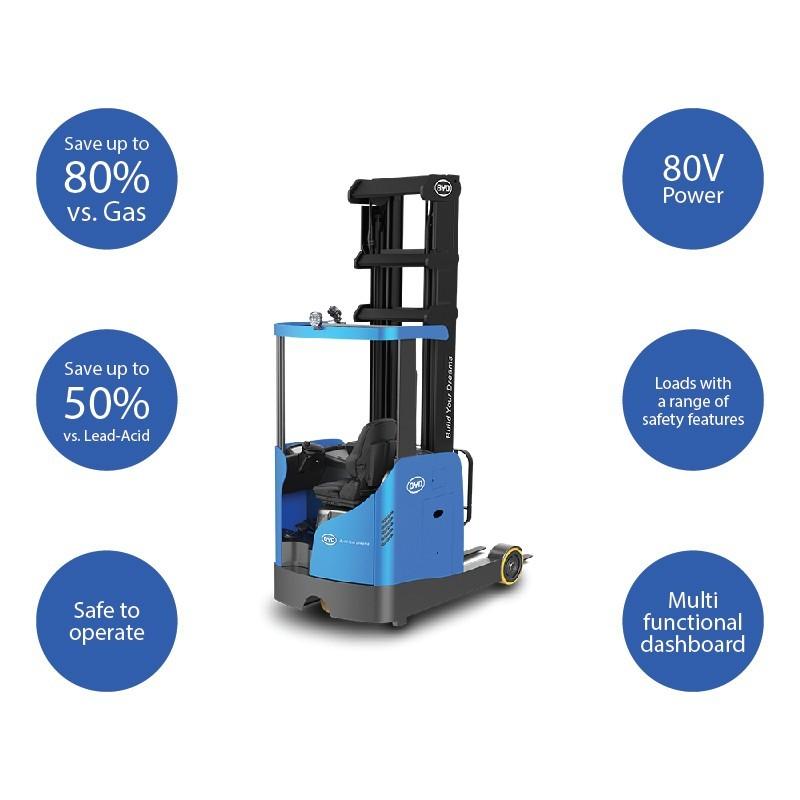

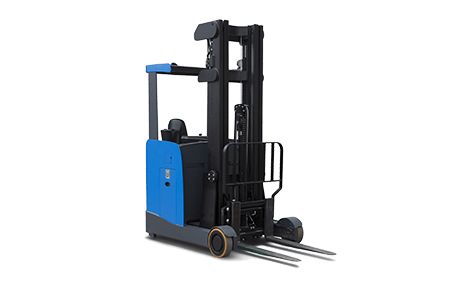

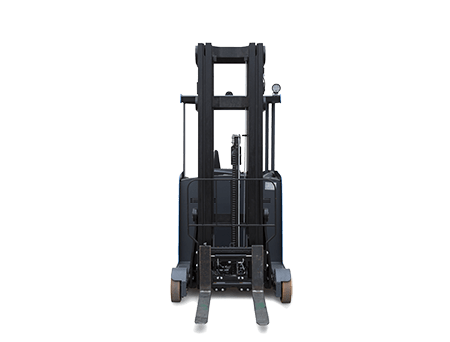

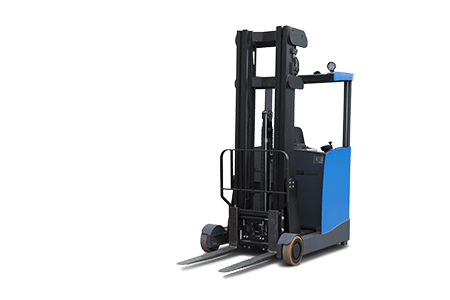

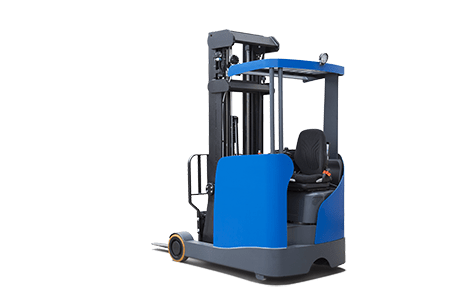

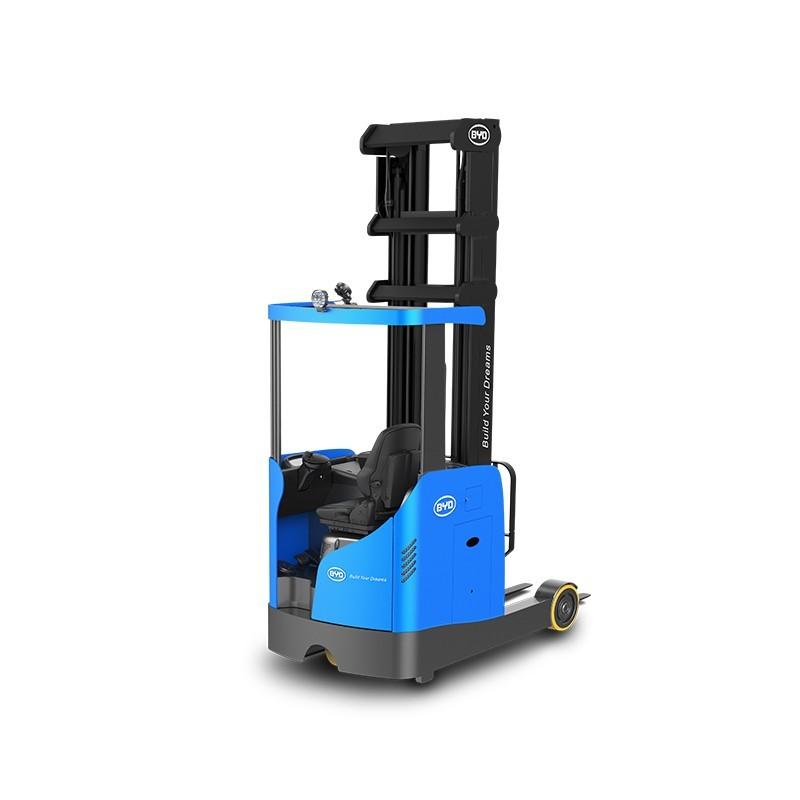

BYD RTR16 Lithium(LiFePo4) Warehouse Reach Truck

$56,500.00 +GST

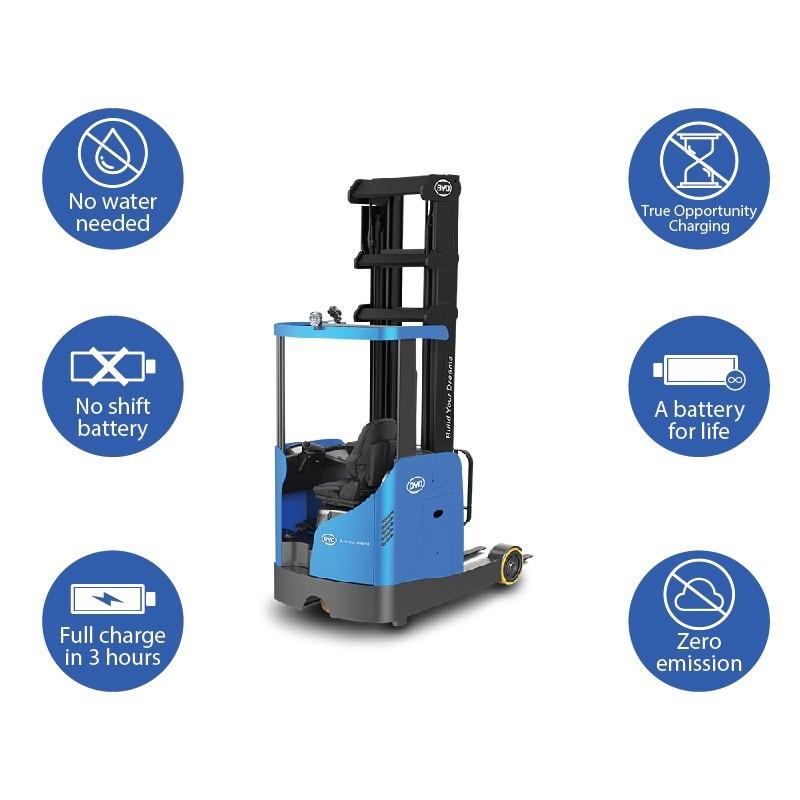

Your ideal tools for heavy usage applications, such as cold storage, eCommerce, 3PL, etc – 1100kg at 8.5m – More environmentally friendly and emission-free – No watering and maintenance-free battery – Opportunity charge allows 24 x 7 operations with just one single forklift per position – more energy efficiency – significant cost saving

Load Capacity

1600kg

Battery Capacity

80V270AH

Battery Type

Lithium Iron Phosphate

Lifting Height

3000-9500mm

Control Options

Fingertip

Attachment Opt.

Others, Side Shifter

Other options

Camera, Safety Lights, Pre-select Leveling

Description

** Price subjects to a specific configuration **

Safety

Electric braking system | Slope protection | Multi-functional seat with safe belt -Operator Presence Sensing (OPS) | High loading position protection | Strobe light and reversing alarm | LED headlights and rear combination lights | Programmable automatic speed limit | Cylinder lowering speed limit | Charger protection | Overload protection

Performance

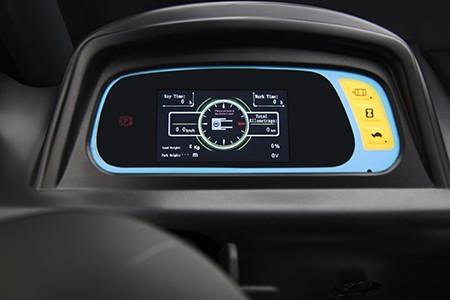

Iron-phosphate Battery | AC drive system | AC hydraulic lift system | Small turning radius | Battery rapid charging & opportunity charging-Programmable performance | Digital (LCD) multifunction display(Time & date, OPS time accumulator, Battery capacity indicator, Over-discharge warning (lift interrupt), Parking brake indicator, Direction indicator, Maintenance indicator, Overload indicator) | Built-in analyzer | Self-diagnostics

Operability & Ergonomics

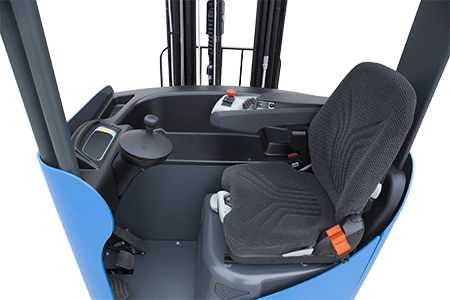

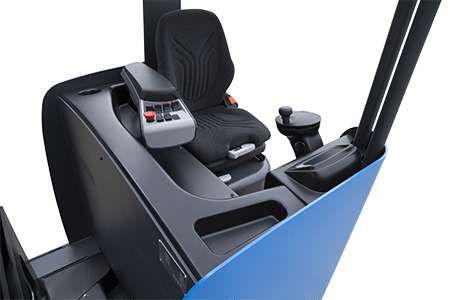

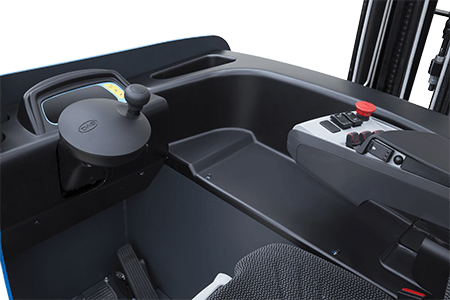

Strategically configured instrument | Front & rear operator assist grips | Automatic fork-leveling control | Hydraulic directional shift control | Seat-mounted Mini dual joystick | Heavy-duty slip-resistant floor mat | Bay with USB port | Bay with Cup holder | Parking brake alarm

Serviceability

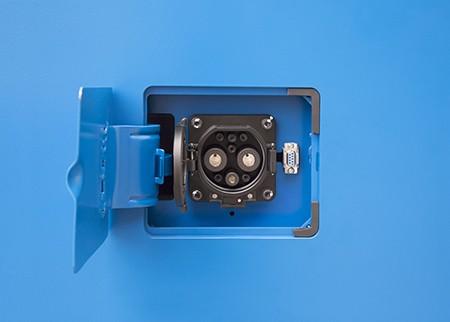

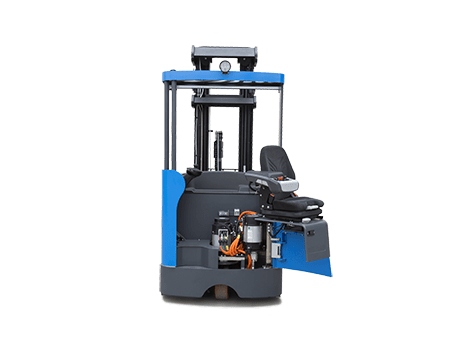

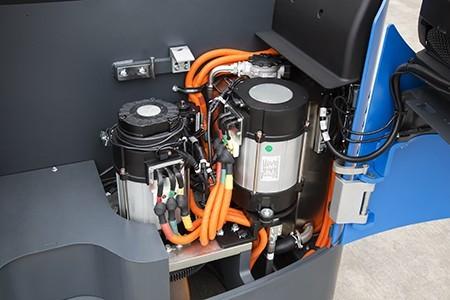

AC drive motor (no brushes or commutator) | AC hydraulic motor (no brushes or commutator) | Charging port analyzing connection | Easy-access no-tools floorboard | Maintenance-free battery case | Easy-lift battery hood | Hydraulic fluid level check | Easy-access controllers | CAN-bus controller wiring

Downloads

BYD RTR16 Data Sheet
